產品簡介
- Windows 10 IoT Enterprise (64-bit)
- Intel? Atom? E3845 1.91 GHz
- 4 GB DDR3 SDRAM
- 64 GB SSD
- VGA and HDMI Port Output
- 2 10/100/1000M Ethernet Ports
- Redundant Power Input

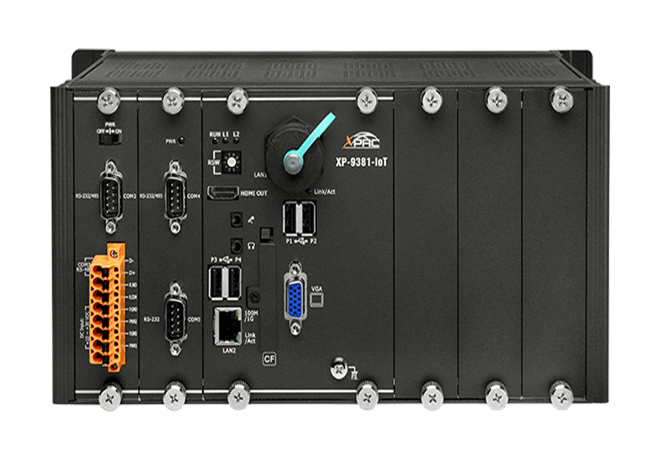

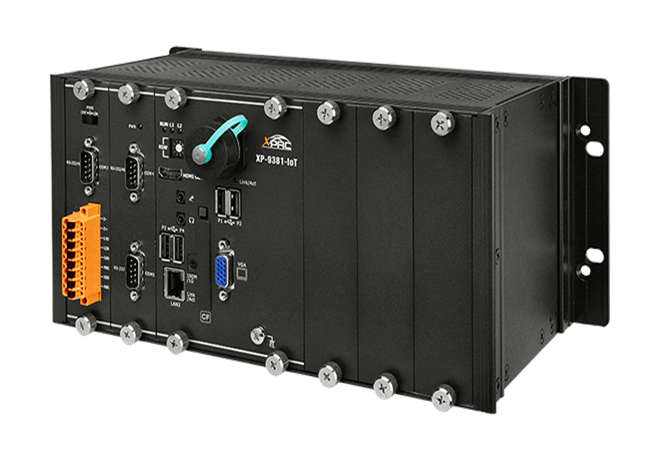

The XP-9381-IoT are Windows 10 IoT Enterprise based PACs that combine computing, I/O, and operator interface into a single unit, and provide a perfect solution to integrate HMI, data acquisition and control in an individual PAC. It is equipped with an Intel E3845 CPU, 7 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA , USB port, RS-232 and RS-485 interfaces. Local I/O slots are available for use with our I-9K and I-97K series I/O modules. And remote I/O expansions are available for use with Ethernet I/O modules or RS-485 I/O modules.
規格
| 軟件 |
| OS |
Windows 10 IoT Enterprise (64-bit) |
| 服務 |
IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework 支持 |
.Net Framework 3.5 ~ 4.8 |
| 多國語系 |
English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK |
Dll for VC, Dll for Visual Studio.Net |
| 主要單元 |
| CPU |
E3845, 1.91 GHz, 64-bit quad core |
| 64-bit 硬件序號 |
Yes |
| 系統內存 |
4 GB DDR3 SDRAM, 64 GB Flash |
| 儲存 |
64 GB SSD, 32 GB CF card |
| 非揮發性儲存器 |
128 KB MRAM, 16 KB EEPROM |
| 實時時鐘 |
Provide seconds, minutes, hours, dates, day of week, month, year |
| 看門狗計時器 |
Dual Watchdog Timer |
| 顯示 |
| 訊號 |
VGA, HDMI |
| 解析度 |
VGA 1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3)
HDMI 2560 x 1600 @ 24bpp |
| LED 燈 |
| 狀態 |
1 x System, 2 x Power, 2 x Programmable |
| I/O 擴充 |
| I/O 類型 |
I-9K, I-97K series |
| 槽數 |
3 |
| 串口 |
| 端口 |
1 x RS-232 (3000 VDC Isolated), 1 x RS-485 (3000 VDC Isolated), 2 x RS-232/RS-485 (3000 VDC Isolated) |
| HMI |
| 蜂鳴器 |
Yes |
| 旋轉開關 |
1 x 10 Position (0 ~ 9) |
| 乙太網絡 |
| Ports |
2 x RJ-45, 10/100/1000 Base-TX |
| 電源 |
| 輸入范圍 |
+10 ~ 30 VDC (1 kV Isolated ) |
| 冗余電源輸入 |
Yes |
| 功耗 |
18.7 W |
| 機構 |
| 尺寸 (mm) |
300 x 164 x 133 (W x L x H) |
| 安裝 |
DIN-Rail, Wall mounting |
| 環境 |
| 工作溫度 |
-25 ~ +60 °C |
| 儲存溫度 |
-30 ~ +80 °C |
| 濕度 |
10 ~ 90 % RH, Non-condensing |
